The tool has to be inserted into the damaged prop during repair process. The minimal prop entrance (at the bottom footplate) diameter is 40 mm (because it is the size of the tool head). The maximum external diameter of the tube is 76 mm (standard version). The maximum distance between the end on the prop and the dent is 1850 mm (standard version). For other diameters and distances please contact andra@propfix.eu
Features
PropFIX is a portable mechanical device operated by one-person force and capable to generate up to 60 kN of power. The tool is inserted through the hole in the lower part of the prop up to the damaged place and unbends the dent by expanding.
Specifications
PropFIX kit + one worker = perfect prop repair team.
1Day
avg. time until propfix pays off
40 mm
Minimal prop entrance hole diameter
110 mm
Maximum diameter ever done with custom made magnet
7 - 10 minutes
Duration of prop repair process
60kN
of power generated by one man force
76 mm
Maximum external diameter in standard version
17,5 kg

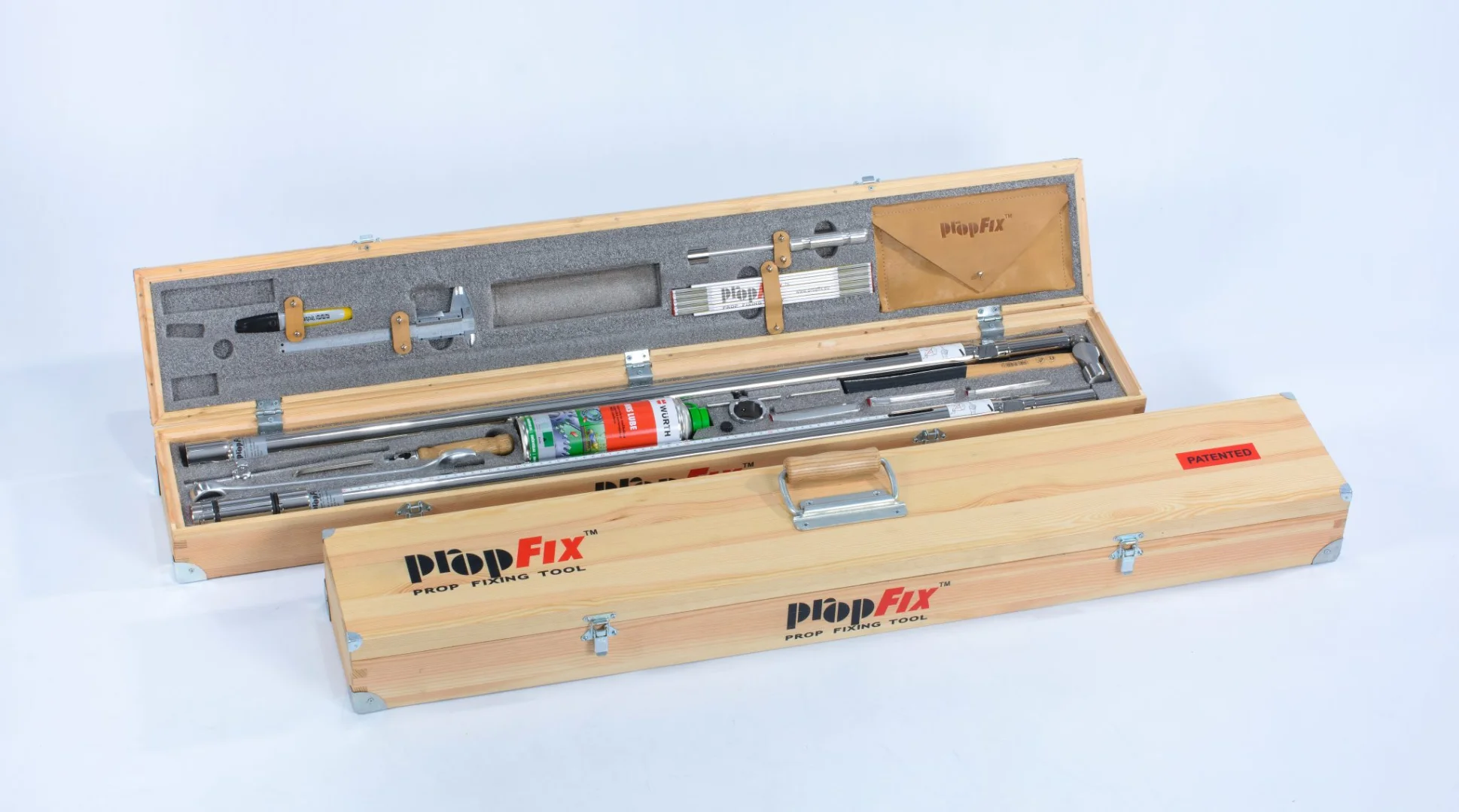

Weight of standard PropFIX kit
1 day
Avg. time until PropFIX pays off
0W
no external energy sources required
84 mm
Maximum internal diameter with additional magnets
1850 mm
Maximum distance reachable with standard tool kit
60 kN
Amount of power generated by 1 man force
Product Reviews
The experience shared by our satistied customers.
HOW DOES IT WORK?

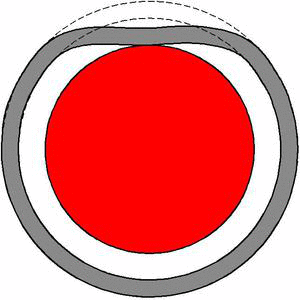

PropFIX tool may only be used for its intended purpose – prop repairing. The principle of the PropFIX operation ensures dent unbending without deforming the rounded cross-section tube, while a special indicator facilitates the repair control.
Choose the best products for your yard
Select from a range of extra items to make prop repair with PropFIX more efficient.
Extra size layer (80 mm)
Additional Item
PropFIX Kit
Additional Item
Working Bench
Additional Item
